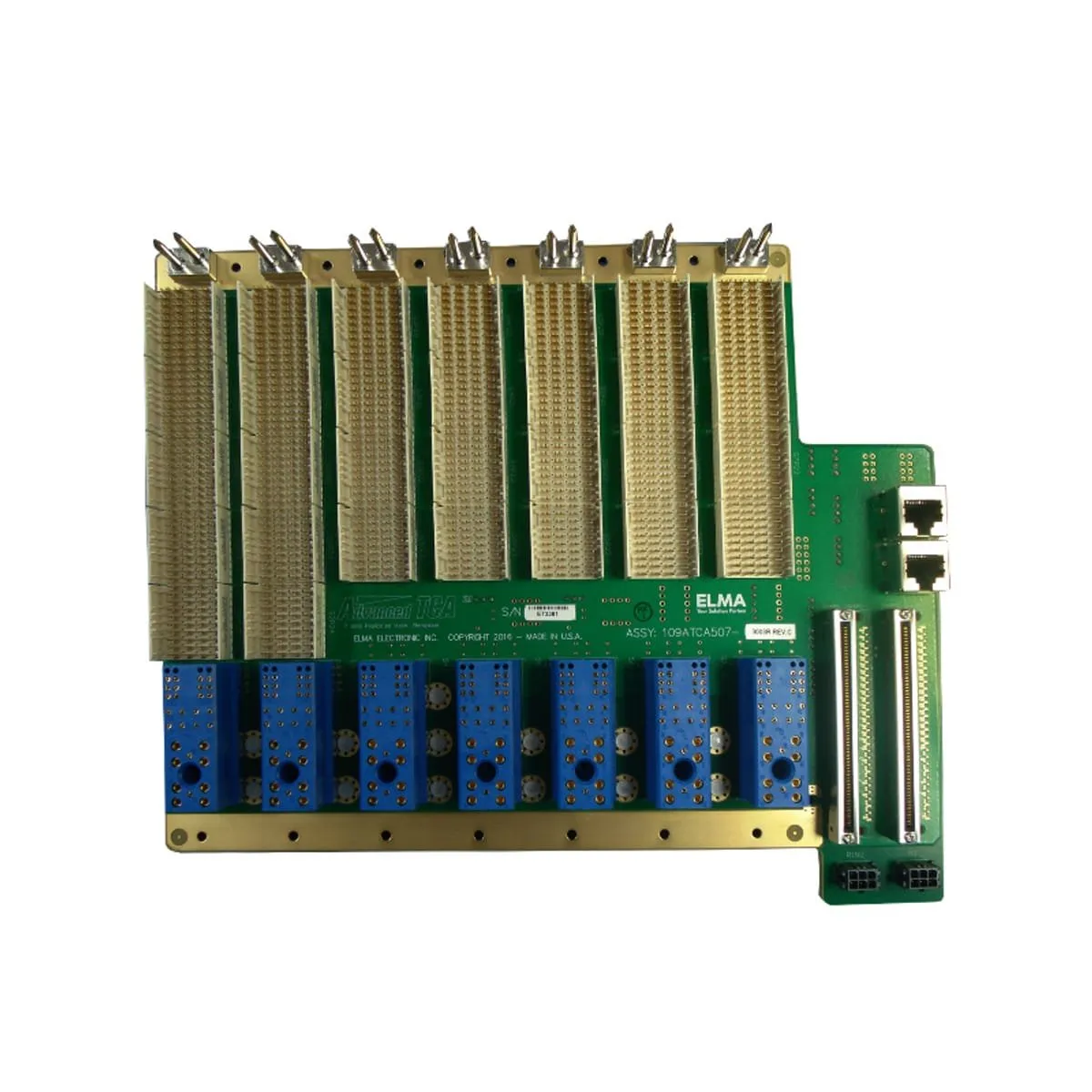

The 5U 7 slot ATCA backplane is a replicated Mesh with dual shelf managers, designed to meet 40Gbps (4 x 10G ports) data rates. Elma's ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance.
