Product Details
＋

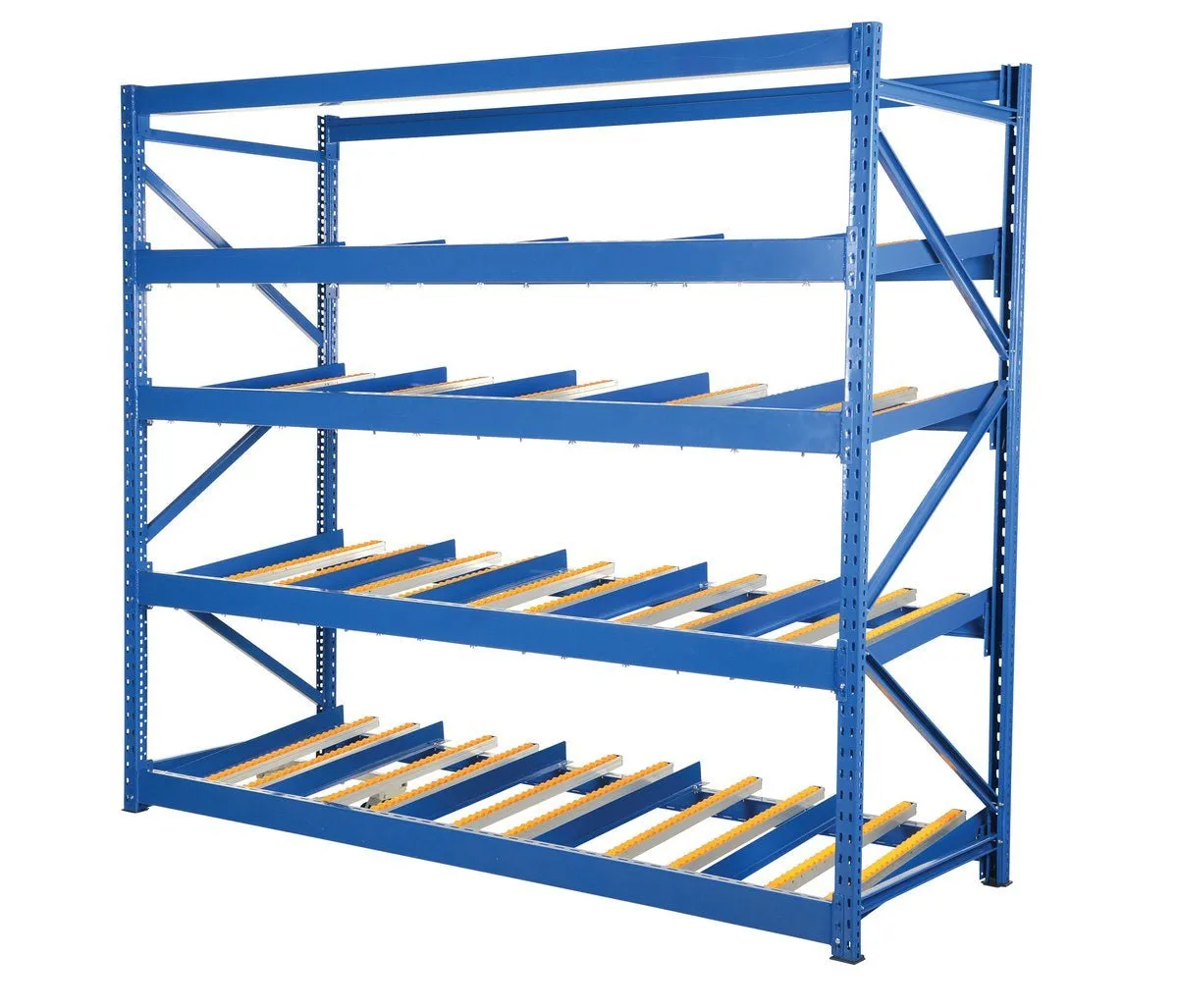

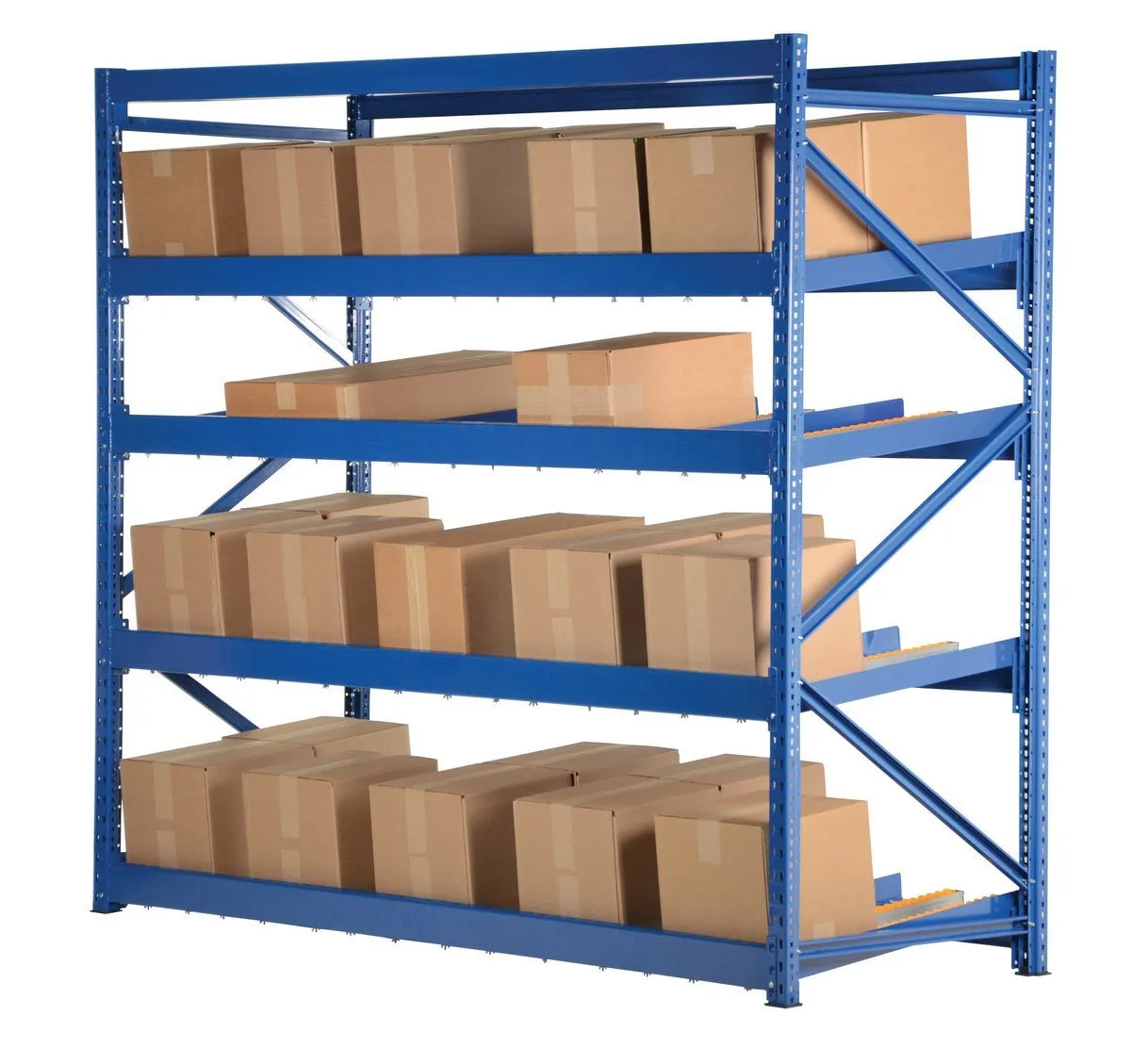

Our carton flow racks are gravity fed on rollers for convenient first in / first out stock rotating. Choose the quantity of levels that best fits your application.
Each level has 1,000 pound capacity and includes four pairs of rollers with 50 pounds per foot capacity. Each level also includes five divider sections. The width of each level is 96". All gravity flow racks are 84" high. Assembly required. Units can be bolted together for additional depth. Baked in powder coat finish for added toughness.
|
Carton Flow Rack |
|||||||
| Model | Image | PDFs | Width of Levels |
Overall Height |
Overall Depth |
Quantity of Flow Levels |
Wt. (lbs) |
| FLOW-3-3 | 96" | 84" | 36" | 3 | 311 | ||
| FLOW-3-4 | 96" | 84" | 36" | 4 | 388 | ||
| FLOW-3-5 | 96" | 84" | 36" | 5 | 429 | ||
| FLOW-4-3 | 96" | 84" | 48" | 3 | 373 | ||
| FLOW-4-4 | 96" | 84" | 48" | 4 | 407 | ||
| FLOW-4-5 | 96" | 84" | 48" | 5 | 474 | ||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
