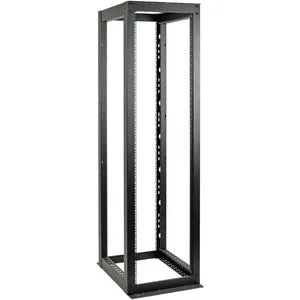

Introducing the Tripp Lite by Eaton 50U Heavy-Duty 4-Post SmartRack Open Frame Rack, the ultimate solution for organizing and securing your network rack equipment with ease and efficiency. Designed with IT managers in mind, this robust and versatile rack provides fast access to installed equipment while ensuring a secure environment for your networking infrastructure. Made from durable cold-rolled steel and featuring a sleek black powder-coated finish, the SR4POST50HD is both functional and stylish, making it the perfect addition to any data center or server room.

• Heavy-Duty Construction: Crafted from high-quality cold-rolled steel, this 50U rack is built to withstand the rigors of everyday use, supporting stationary loads up to 3000 lb, ensuring your equipment is secure and stable.
• Easy Assembly: The SR4POST50HD comes with all necessary hardware for assembly and features a self-squaring design with bolt-down provisions, allowing for quick and hassle-free installation.
• Unobstructed Airflow: The open frame design promotes optimal airflow, reducing the risk of overheating while providing easy access to your equipment and cabling for maintenance and upgrades.
• Versatile Mounting Options: This rack is equipped with numbered, square-hole mounting positions for the effortless installation of standard 19-inch rack equipment, and supports equipment depths of up to 35 inches.
• Expandable & Mobile: For high-density applications, multiple racks can be bolted together side by side. You can also enhance mobility with the optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit, which supports rolling loads of 3000 lb.

Technical Details of Product

• Model: SR4POST50HD
• Rack Units: 50U
• Material: Heavy-duty cold-rolled steel
• Load Capacity: Stationary loads up to 3000 lb; Rolling loads also up to 3000 lb with optional caster kit
• Mounting Hole Type: Square, numbered holes for easy alignment
• Equipment Depth Support: Up to 35 inches
• Optional Side Panels: SR50SIDE4PHD (set of two half-size side panels)

How to Install

Installing the Tripp Lite 50U Heavy-Duty 4-Post SmartRack Open Frame Rack is straightforward:

1. Begin by unpacking all components and ensuring that you have all necessary hardware included.
2. Assemble the frame by following the self-squaring design, ensuring all corners are tightened and secure.
3. Attach the rack to the floor using the provided bolt-down provisions if needed for added stability.
4. Mount your equipment using the numbered square-hole mounting positions for a precise fit, making sure to account for the depth of your equipment.
5. If desired, install vertical PDUs and cable managers using the tool-less button holes for a neat and organized setup.
6. Finally, consider adding the optional caster kit for easy mobility, especially in environments that require frequent equipment changes.

Frequently Asked Questions

• What is the maximum weight capacity of the Tripp Lite 50U rack? The rack supports stationary loads up to 3000 lb and rolling loads up to 3000 lb with the optional caster kit.
• Can I use this rack for equipment that is deeper than 35 inches? No, the rack is designed to accommodate equipment depths of up to 35 inches.
• Is the rack adjustable? The rack features fixed mounting positions; however, it can be combined with other units to create customized configurations.
• How do I maintain airflow within the rack? The open frame design naturally provides unobstructed airflow, but make sure to manage cabling effectively to prevent airflow blockages.
• Can I add side panels to the rack? Yes, you can enhance the look of your rack with optional side panels (SR50SIDE4PHD) for a clean, professional finish.
